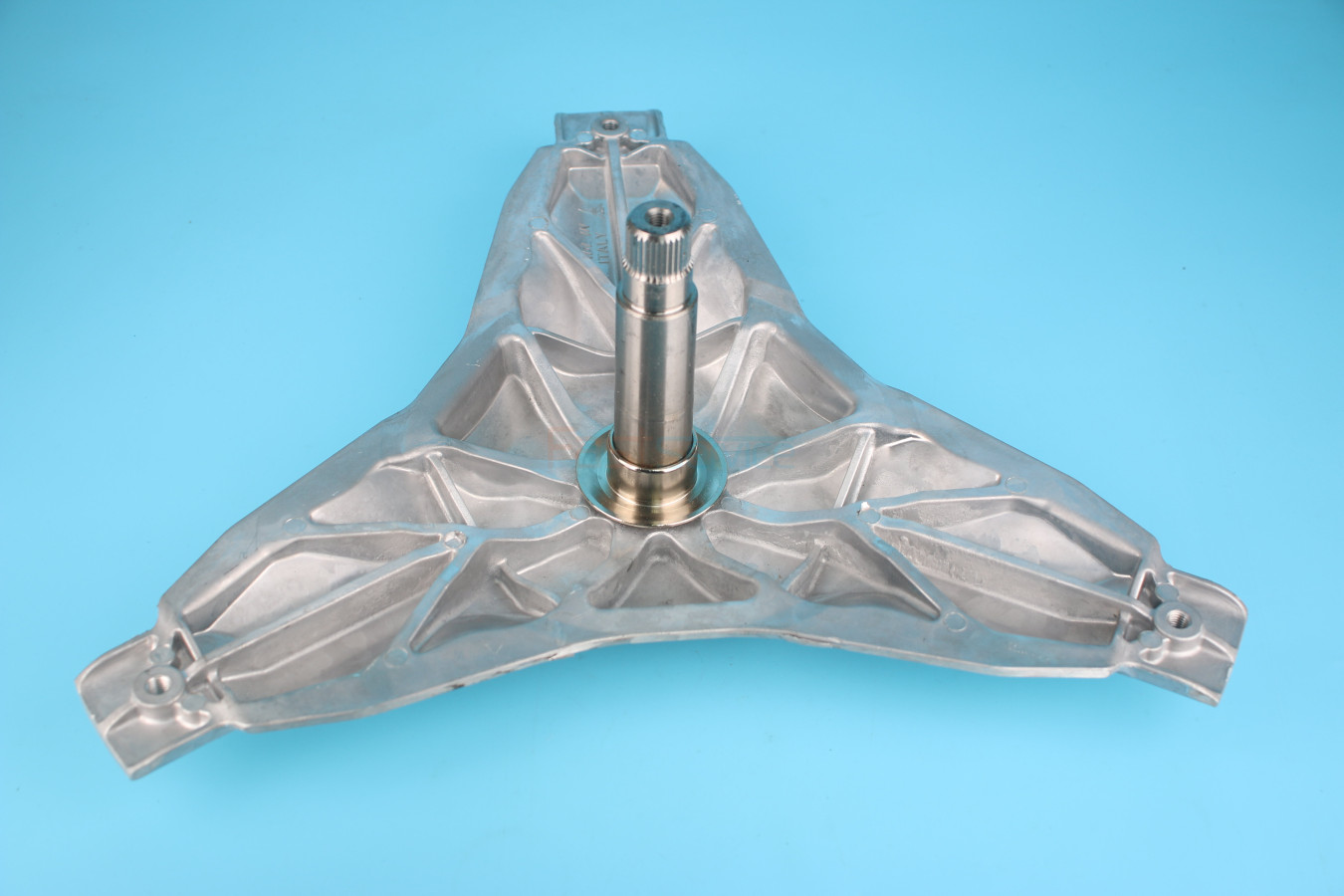

Крестовина для стиральных машин Miele
Заказной код: 4264765, 04264766
Размеры:
H1 общая высота = 127мм
H2 высота выточки под сальник = 18мм
H3 от втулки до внешнего подшипника = 75мм
H4 от посадки внешнего подшипника, до шлицов шкива = 15мм
D1 диаметр кольца посадки сальника = 35мм (в баке устанавливается сальник 35x76x10/14)
D2 посадка внутреннего подшипника = 30мм (внутренний подшипник 6306)
D3 диаметр посадки внешнего подшипника = 25мм (внешний подшипник 6305)
Для крепления шкива используются 34 шлица, шкив крепится болтом M8
Высота шлицевой части 18мм
L1 длинна луча от внутреннего подшипника до центра крепежного отверстия = 191мм
Крепление к барабану: 3 шпильки M8
Применяется в моделях:
100Anniversary 40Anniversary Aniversario AnniversaryW Aurin Aurin1100 Aurin2000 Aurin2001 AurinNova Brillant Brillant1180 Brillant1200 Brillant1263WPS Brillant1400 Brillant1550 Brillant1600 Brillant4807WCS Brillant4808WPS Brillant4823WCS Brillant4825WPS Brillant4845WPS Brillant4872 Brillant4876 Brillant4878WPS Collection Cosmos CosmosS CosmosWPS DieKueche Duet Duett Econic1100 Econic1150 Econic1200 Econic1400 Econic1600 Econic1677WPS Eco-Plus Esprit Europa EuroStar EuroStarPlus EuroStarS Excellent92 Exclusive ExclusiveS Expert ExpertV3860WPS ExpertV3945WPS ExpertV6345WPS ExpertV8830 ExpertV8835 ExpertV8850 ExpertV8935 ExpertV9945 ExpertV9960 ExpertW1069 ExpertW2099 Exquisit Exquisit1100 Exquisit1200 Exquisit1300 Exquisit1306 Exquisit1310 Exquisit1330 Exquisit1338 Exquisit1342 Exquisit1351 Exquisit1430 Exquisit1461 Exquisit1470 Exquisit1471 Exquisit1485 Exquisit1490 Exquisit2100 Exquisit2150 Exquisit2250 Exquisit3823WCS Exquisit3825WPS Exquisit3845WPS Exquisit3872 Exquisit3876 Exquisit3878WPS Finlandia Frontstar Futura Gala GalaW GalaW961 Gold2000 INFOCONTROLII Jubilaeum Jubilaeum30 Jubilee Jubileu Jubileum Jubileum94 Juwel KUECHE Marin60Hz Meteor Meteor1038 Meteor1042 Meteor1043WPS Meteor1050 Meteor1051 Meteor1052WPS Meteor1060 Meteor1063WPS Meteor1100 Meteor1100S Meteor1230 Meteor1300 Meteor1310 Meteor1320 Meteor1600 Meteor2030 Meteor2061 Meteor2073 Meteor2074 Meteor2080 Meteor2086WPS Meteor2100 Meteor2110 Meteor2120 Meteor2130 Meteor2150 Meteor2200 Meteor2250 Meteor2290 Meteor2330 Meteor2340 Meteor2807WCS Meteor2823WCS Meteor2825WPS Meteor2845WPS Meteor2866 Meteor2872 Meteor2877 Meteor2878WPS Meteor800 MeteorV3545WPS MeteorV3660WPS MeteorV4345WPS MeteorV6445WPS MeteorV8435 MeteorV8500 MeteorV9545 MeteorV9600 Miele@homePowerline Mondia Mondia1050 Mondia1070 Mondia110 Mondia1110 Mondia1120 Mondia1138 Mondia1142 Mondia1200 Mondia1207 Mondia1220 Mondia1227 Mondia1261 Mondia1271 Mondia1285WPS Mondia1300 Mondia1304 Mondia1307WCS Mondia1363WPS Mondia140 Mondia1407 Mondia1507 Mondia1823WCS Mondia1825WPS Mondia1845WPS Mondia1872 Mondia1876 Mondia1878WPS MondiaSE NovoAtlantis NovoEco NovoPrima NovoStar NovoStar1 NovoStella NovoStellaA NovoStellaE NovoTrend NovoDuo Oceanis Power1100 Power1300 Power1600 Premier Premier300 PremierNovo PremierPlus Primavera Prisma Prisma1400 PW51 RapidWash Royal Senator Senator110 Senator115 Senator120 Senator1200 Senator140 Senator140WPS Senator1400 Senator160WPS Senator1600 Senator1600S Senator165WPS Senator1677 SenatorD SenatorSE SenatorW Solitär Special SpecialComfort Superior1100 Superior1120 Superior1200 Superior1220 Superior1320 Superior1400 Superior1420 Superior1600 Superior1620WPS Superior1650 Superior1663WPS Superior1677WPS TopModel V3435Expert V3635Meteor V8350Meteor V9450WPSMeteor V9600WPSMeteor V9660WPSMeteor V9845WPSExpert V9860WPSExpert V9960WPSExpert VivaStarW30 VivaStarW300 W1903 W1918 W1930 W1930i W2099Expert W300 W300Special W300-31 W300-33 W300-55 W300-75 W300-76 W300-77 W302 W303 W304 W304Plus W304PlusWCS W304SpecialIV W3040 W305 W306 W307 W308 W309 W310 W311 W312 W313 W3140 W3145 W315 W3160 W317 W320 W322 W323 W3235 W327 W330 W332 W333 W3345 W3350 W337 W340 W341 W342 W343 W3445 W3460 W347 W349 W351 W352 W353 W355 W3560 W357 W360 W361 W3616 W362 W363 W3645WPS W3660 W367 W370 W373 W374 W375 W3756 W376 W377 W381 W383 W387 W6245WPS W697 W698 W699 W700 W701 W701W W7039 W7059 W711 W800 W800-20 W800-24 W800-30 W800-34 W800-50 W800-54CH W801 W802 W803 W804 W805 W806 W806SpecialI W807 W808 W809 W810 W811 W8115 W812 W8120 W8125 W816 W817 W818 W819 W820 W821 W822 W8225 W823 W824 W825 W827 W828 W829 W830 W831 W8310 W8314 W8315 W832 W833 W834 W835 W836 W837 W838 W839 W840 W841 W842 W842SpecialII W843 W844 W845 W850 W851 W852 W853 W8535 W854 W8540 W855 W857 W859 W861 W862 W8620 W863 W864 W8640 W865 W865SpecialIII W866 W867 W870 W8712 W872 W873 W874 W875 W876 W877 W878 W8810 W900Special W900-11 W900-13AllWater W900-18 W900-21 W900-30 W900-33 W900-34 W900-41CH W900-57 W900-79CH W900-85 W900-86 W900-87 W900-89CH W901 W902 W903 W904 W905 W9059 W906 W907 W908 W909 W910 W911 W911D W911M W912 W913 W9135 W914 W9140 W9145 W915 W916 W917 W918 W919 W921 W922 W923 W9235 W9245 W925 W9260 W927 W929 W930 W930i W931 W931i W9316 W933 W934 W9345 W935 W936 W937 W939 W941 W9416 W9460 W947 W948 W9515 W952 W953 W957 W959 W960 W961 W961M W9616 W963 W9645WPS W965 W968 W969 W970 W971 W972 W973 W974 W979 W980 W985 W986 W987 W989 W989i W1903 W1918 W1930 W1930I W300 W302 W303 W304 W305 W306 W307 W308 W309 W310 W311 W312 W313 W315 W317 W320 W322 W323 W327 W330 W332 W333 W337 W340 W341 W342 W343 W347 W349 W351 W352 W353 W355 W357 W360 W361 W362 W363 W367 W370 W373 W374 W375 W376 W377 W381 W383 W387 W697 W698 W699 W700 W701 W701W W711 W800 W801 W802 W803 W804 W805 W806 W807 W808 W809 W810 W811 W812 W816 W817 W818 W819 W820 W821 W822 W823 W824 W825 W827 W828 W829 W830 W831 W832 W833 W834 W835 W836 W837 W838 W839 W840 W841 W842 W843 W844 W845 W850 W851 W852 W853 W854 W855 W857 W859 W861 W862 W863 W864 W865 W866 W867 W870 W872 W873 W874 W875 W876 W877 W878 W901 W902 W903 W904 W905 W906 W907 W908 W909 W910 W911 W912 W913 W914 W915 W916 W917 W918 W919 W921 W922 W923 W925 W927 W929 W930 W930I W931 W931I W933 W934 W935 W936 W937 W939 W941 W947 W948 W952 W953 W957 W959 W960 W961 W963 W965 W968 W969 W970 W971 W972 W973 W974 W979 W980 W985 W986 W987 W989 W989I WA75 WEC9010 WEC9013 WEC9015 WhiteGiant WS5425 WS9400ProLine WS5425 WSE5405 WSE5425 WSE5405 WSE5425
